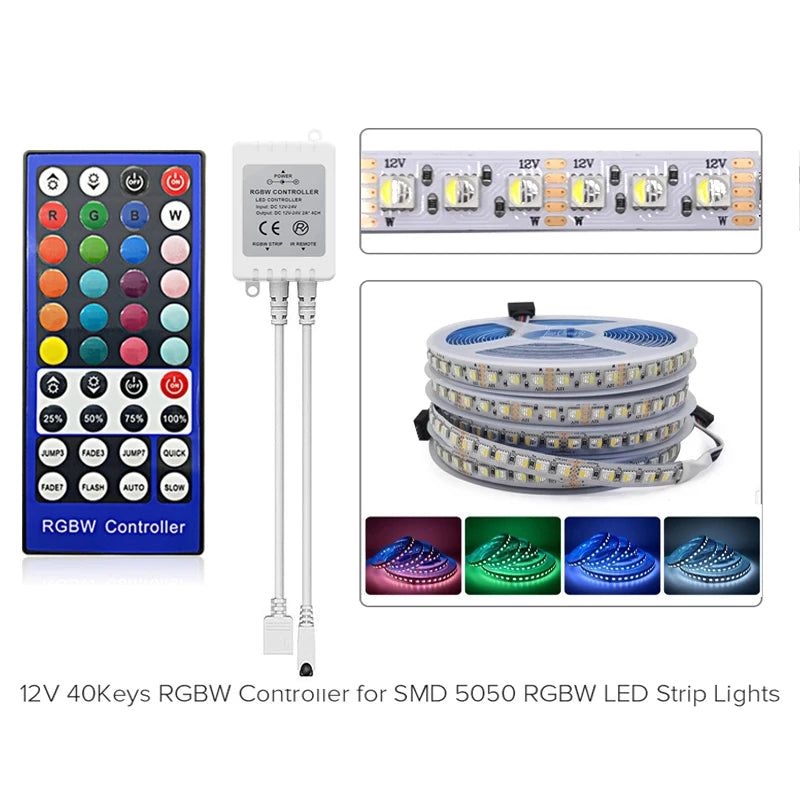

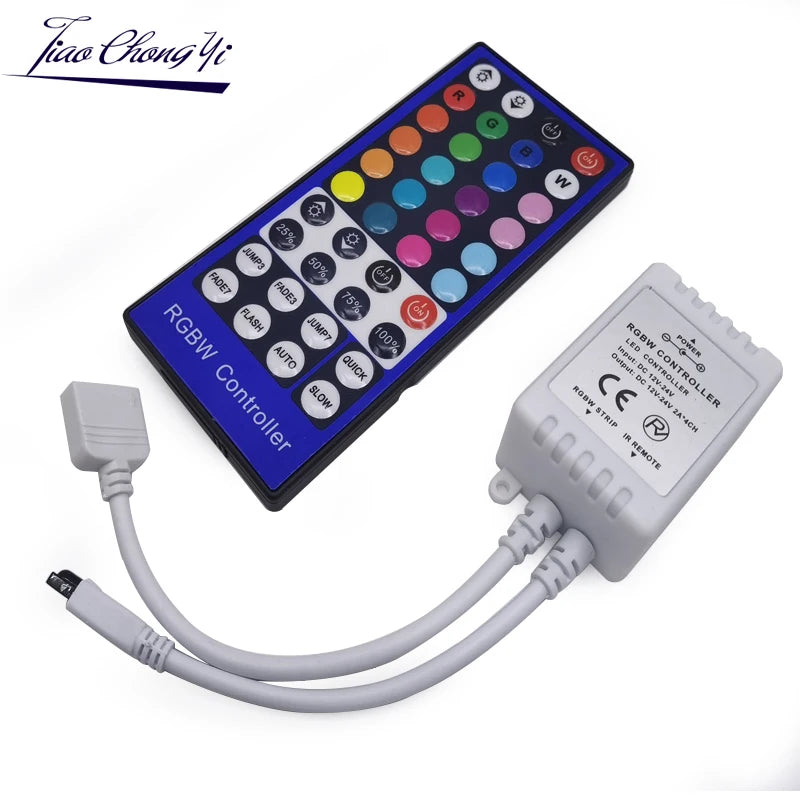

DC12-24V 40Key RGBW led Controller Dimmer 5Pins IR Remote Control 4 Channels LED Controller For 5050 RGBW RGBWW LED Strip Lights
DC12-24V 40Key RGBW led Controller Dimmer 5Pins IR Remote Control 4 Channels LED Controller For 5050 RGBW RGBWW LED Strip Lights
Couldn't load pickup availability
SPECIFICATIONS
Applicable Lights: RGBW LED Strip Lights
Brand Name: TiaoChongYi
Certification: ce,ROHS,CCC
Connection Mode: Common anode
Controled Method: IR Remote
Features: 40Keys RGBW Controller
Hign-concerned Chemical: None
Item Type: RGB controler
Material: PVC
Max. Load Power: 192W
Model Number: RGBW Controller
Origin: Mainland China
Oscillation frequency: .
Power Source: DC
Remote Distance: 12 meters
Voltage: 12-24v
Warranty: 2 Year
Wattage: .
Specifications:
Working temperature: -20-60 °C
Supply voltage: DC12-24V
Product Size: L50 * W35 * H23mm
Net weight: 50g
Output: 4 CMOS drain-open output
Connection method: common anode
Power: 12V <96W, 24V <192W (8A)
Max load current: 2A * 4CH
Package Content:

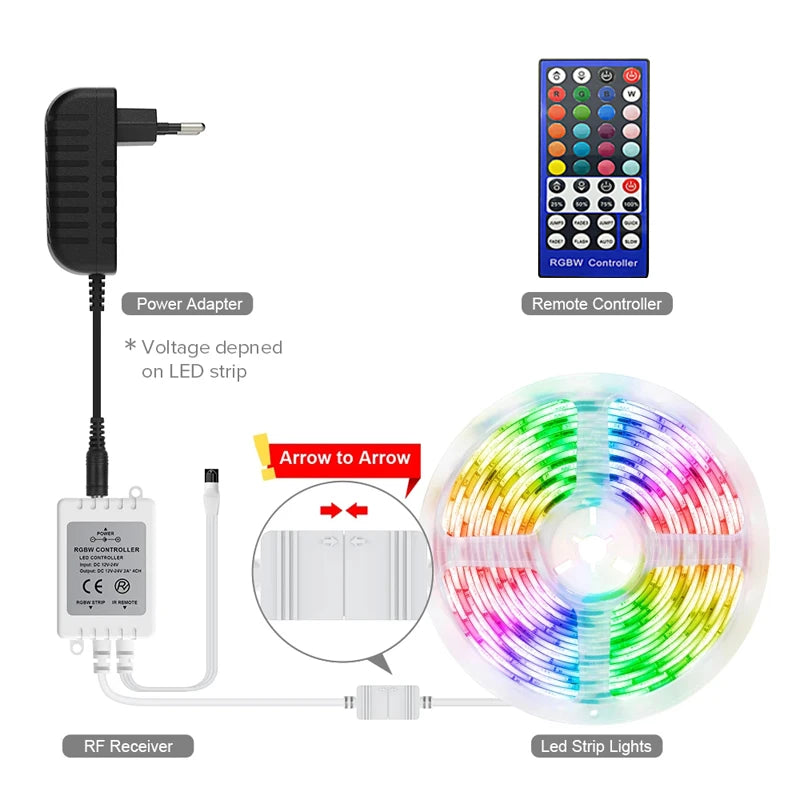

1 x 40 Keys IR Remote Controller
1 x Remote Receiver
Bettery is not included because of the security reason and custom problem during transport,
Bettery model is CR2025,Please buy it yourself in your local market.

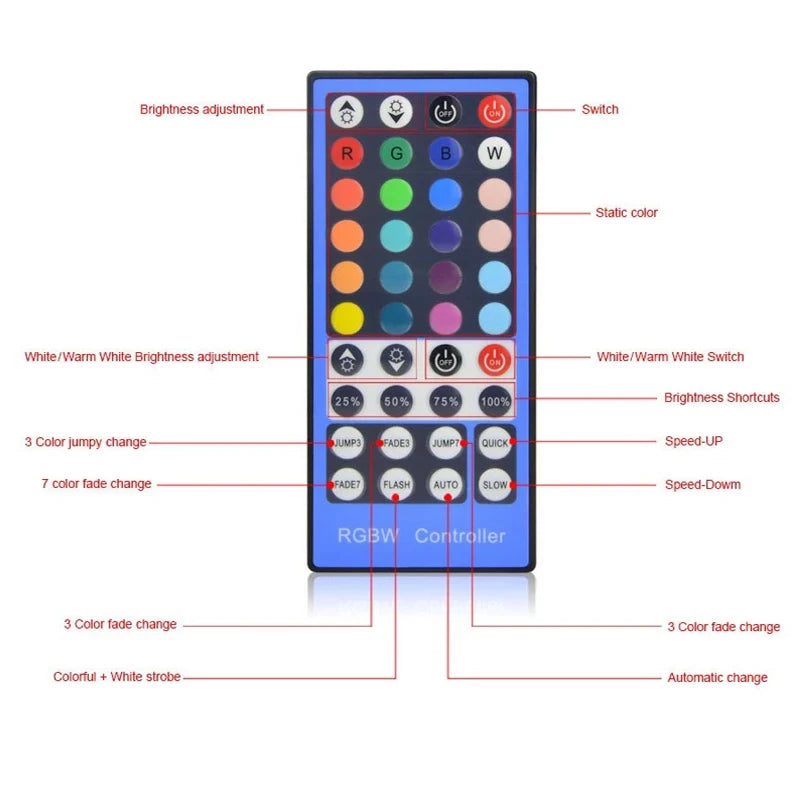

This
RGBW controller is divided into RGB and W two parts, it can be turn on /
OFF RGB part and W part independently, and can controlled their
brightness and their color independently, such as, when turn on RGB
part, it can change RGB part's color and brightness; and can turn on W
part at the same time, and can turn on / OFF W part or adjust its
brightness When at 3/7 color Fade model, can adjust their changing
speed;. when at 3/7 color Jump mode, can adjust their brightness and
adjust changing speed.
