Brand Name: NoEnName_Null
Certification: CE,RoHS
Dooya 4 wire motor: no support
Dooya RF433 rolling code motor: no support
Hign-concerned Chemical: None
Installation Method: Self-Contained
Origin: Mainland China

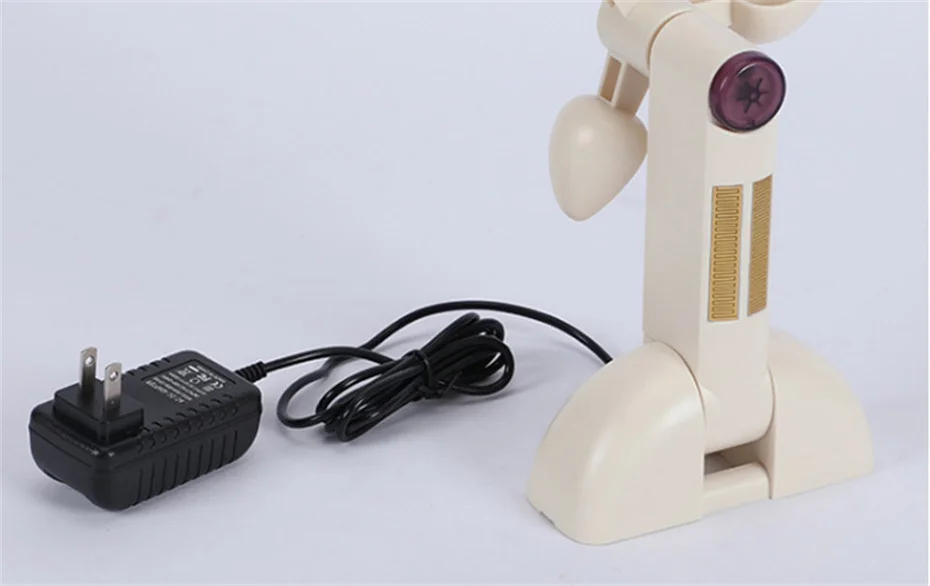

Power Plug: US plug with 2 pins
Voltage: 110-240V 50 60HZ
only work for Dooya RF433 motor fixed code with 3 wires: yes
sensor need to pair with motor: yes
working frequency: 433.92mhz
working voltage: 12V 1A

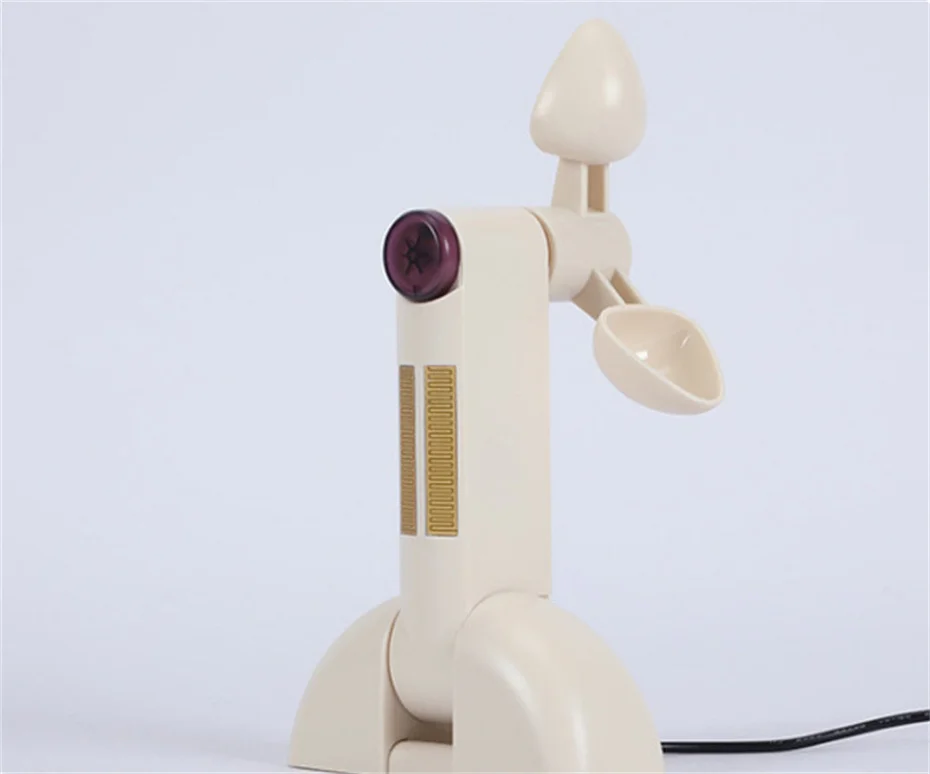

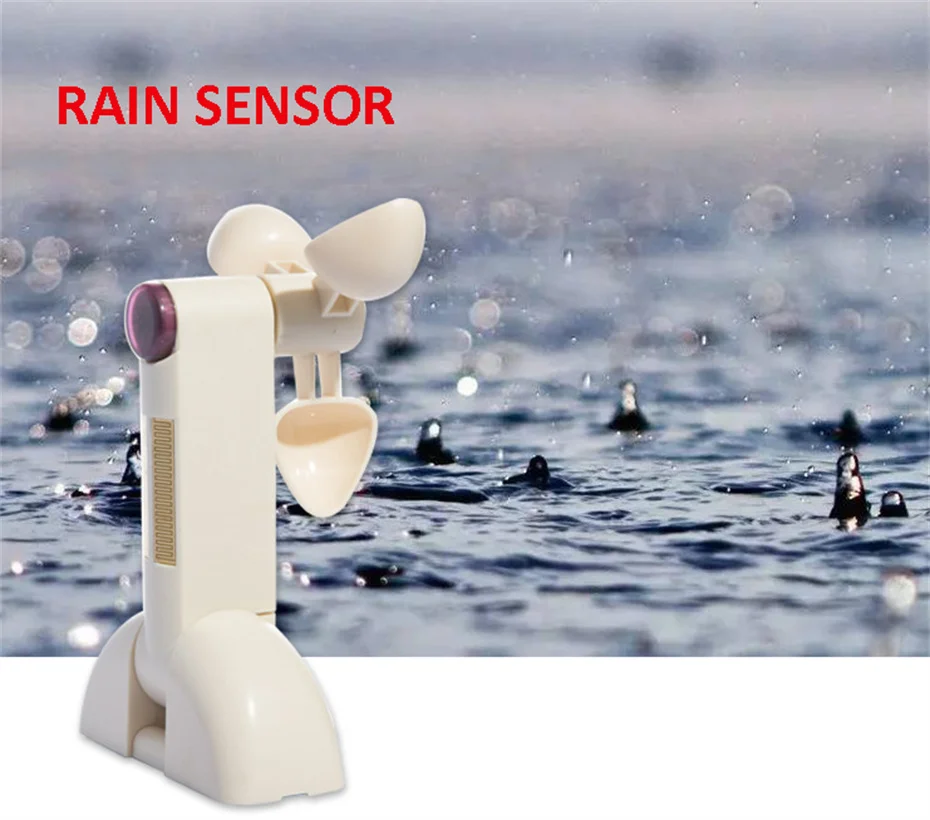

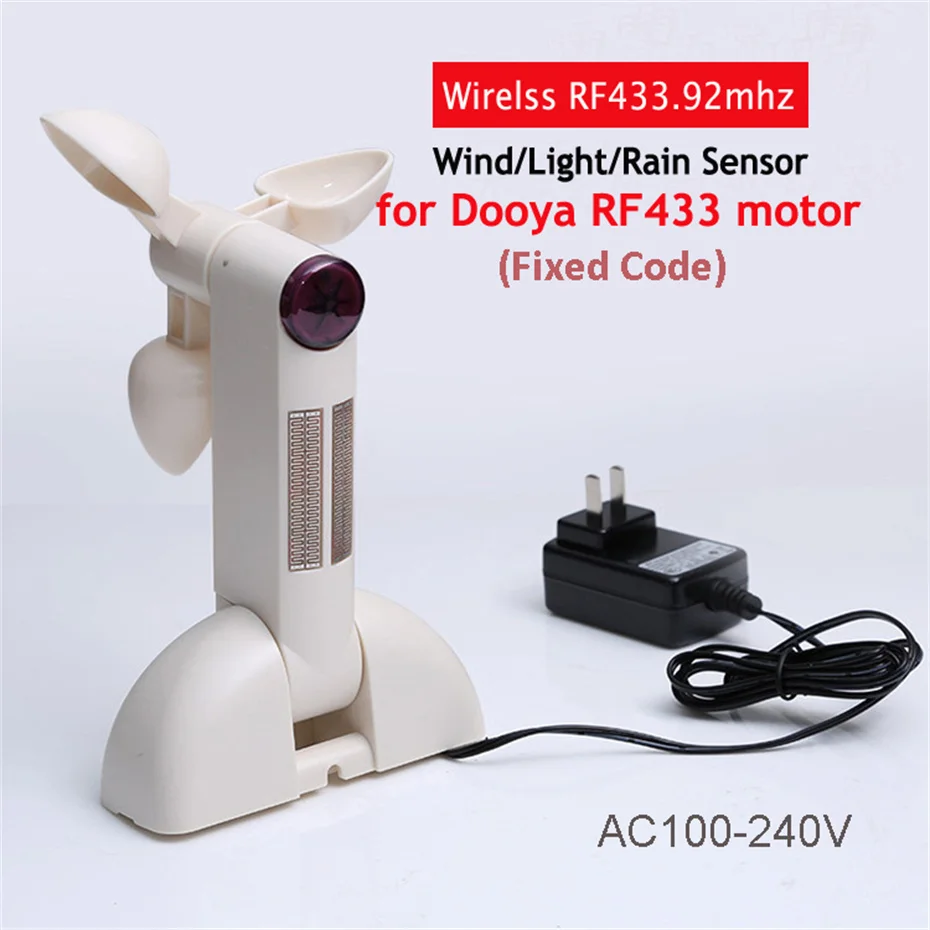

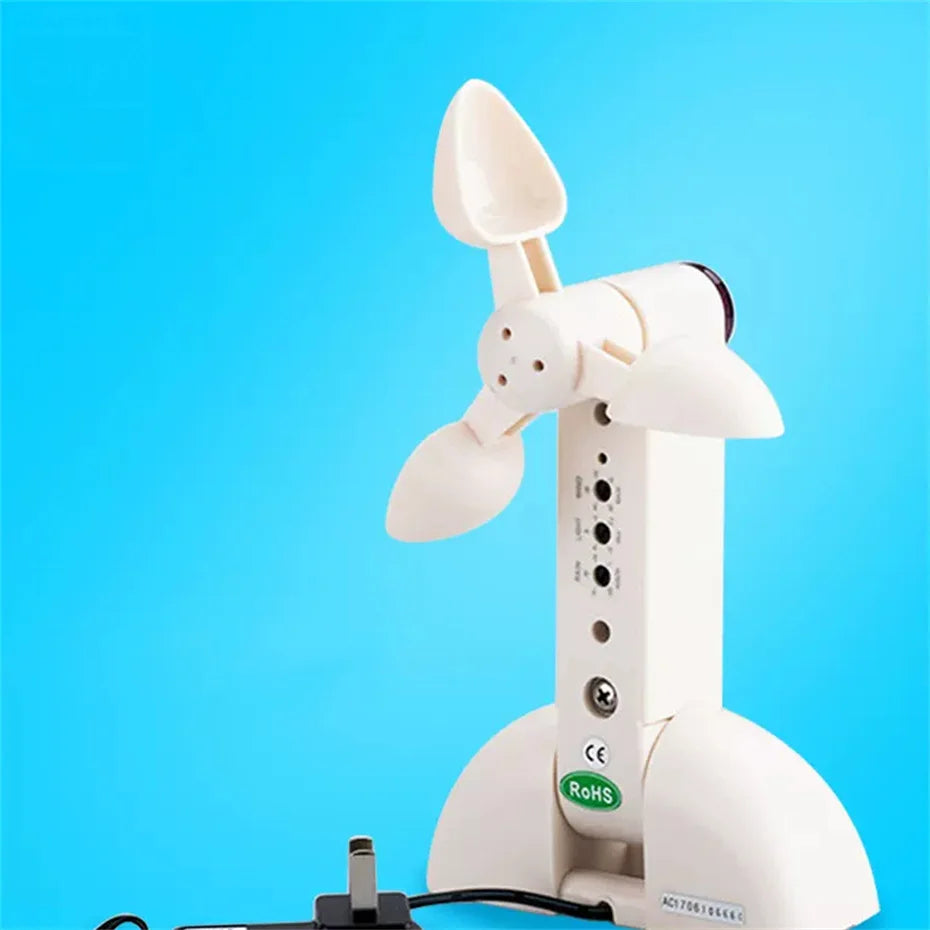

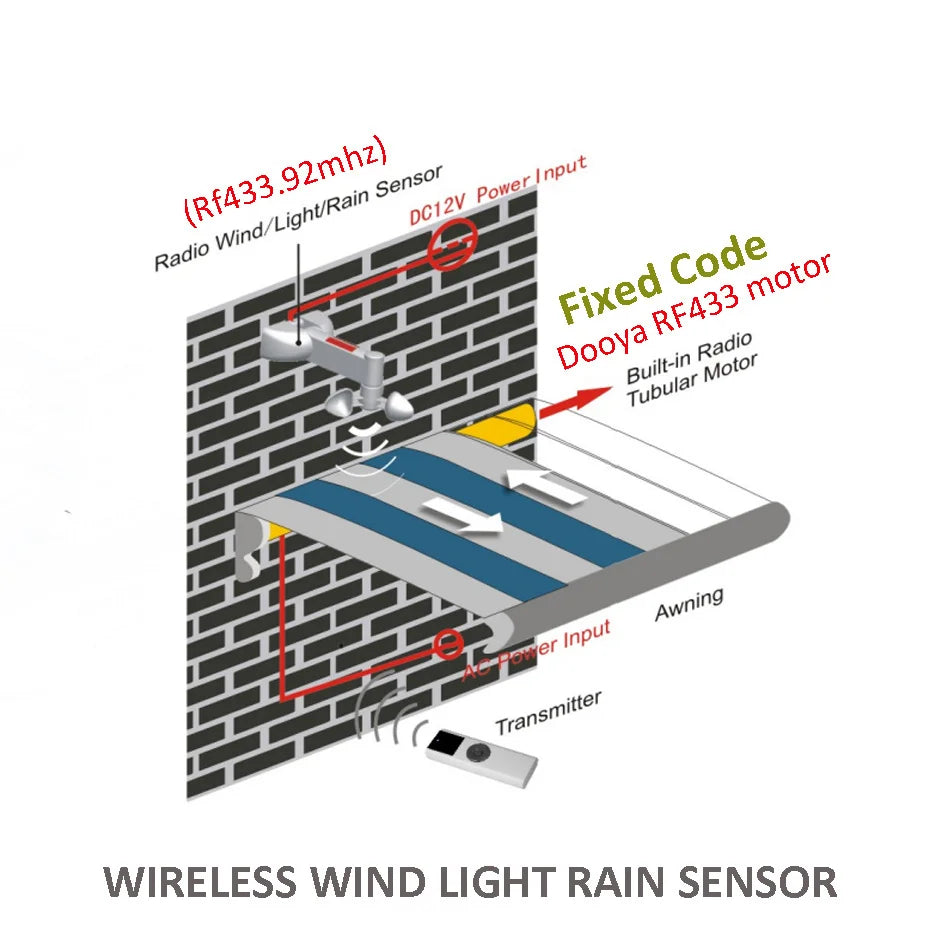

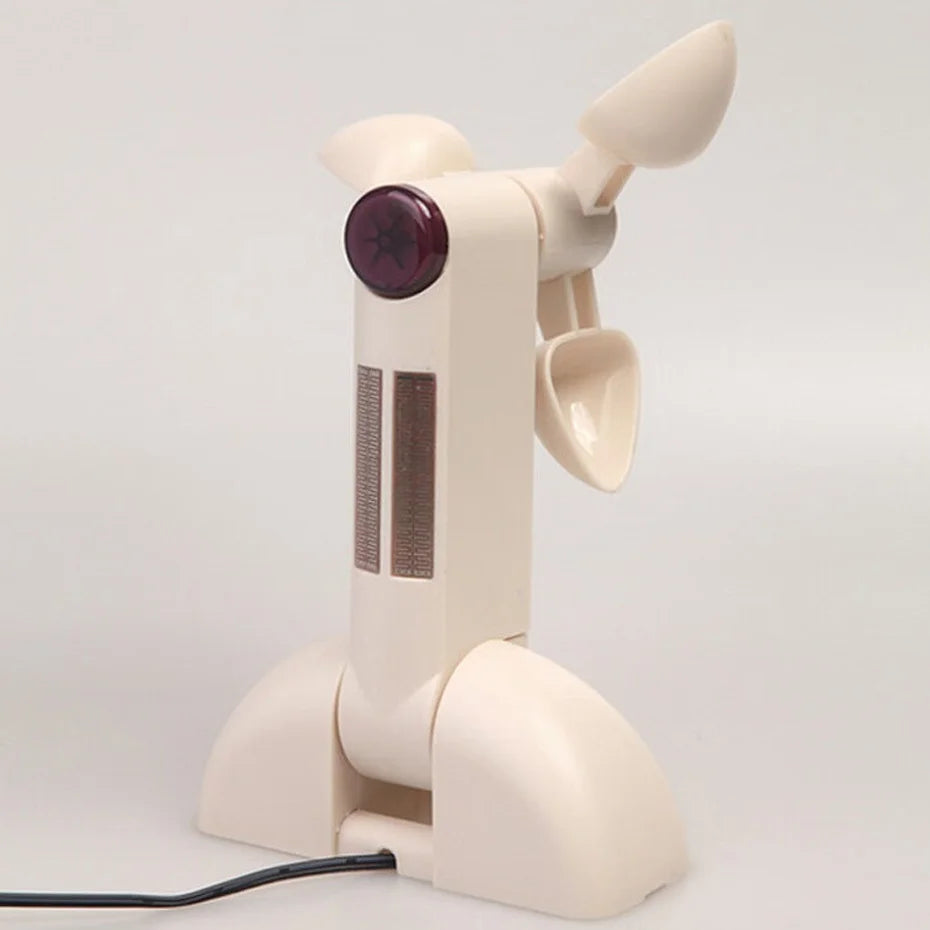

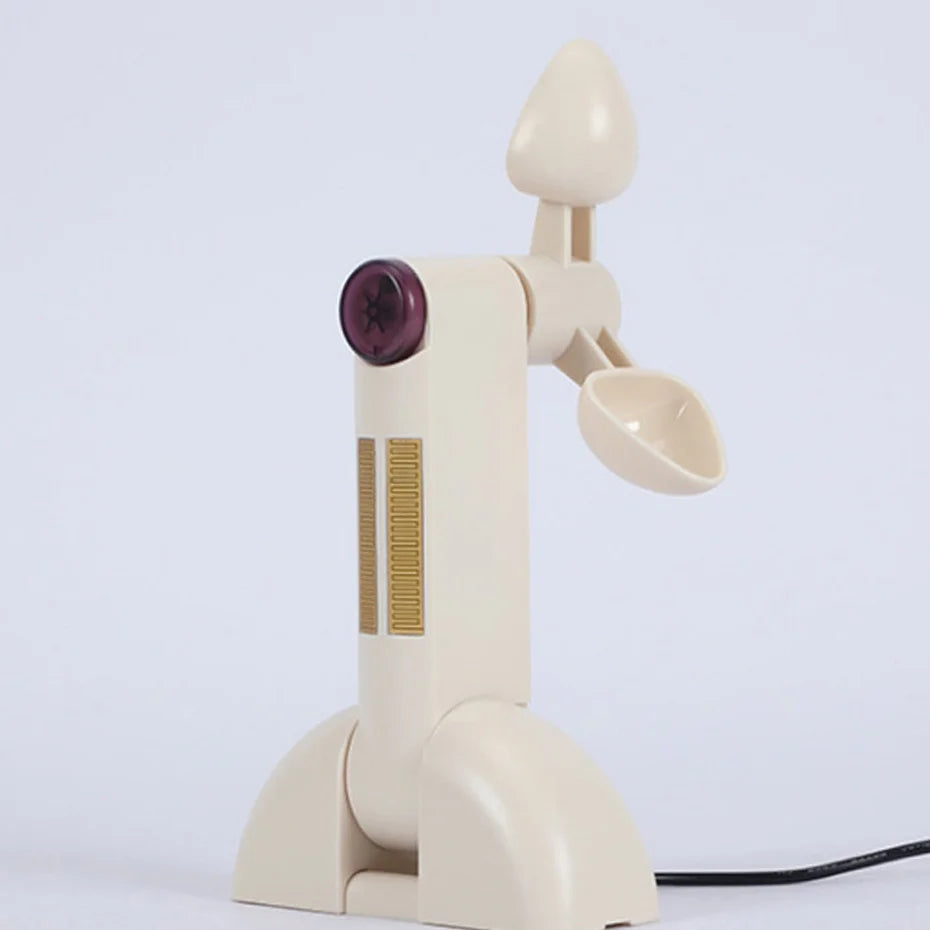

New Smart Wireless RF433 Wind Light Rain Sensor,only for Dooya RF433 Curtain Motor of Fixed Code with 3 wires,Open Close Window Automatically,no suppot Dooya Rolling Code Motor
Warm Notice
1. This RF433 wind light rain sesnor only work with Dooya RF433 motor of fixed code(motor made by Dooya before 2025)
2. Before order,check and make sure your Dooya RF433 motor has 3 wires,this sensor can not work with 4 wire motor.
3. Before use, you need to make pair between this sensor and your RF433 Dooya motor with the help of Dooya Hand-held emitter/RF433 emitter wall switch like DC2700/DC1650....

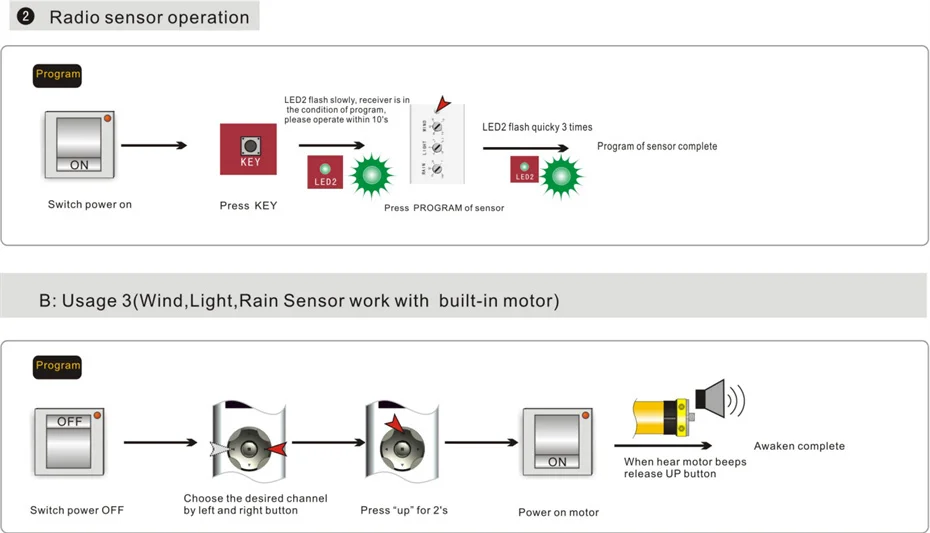

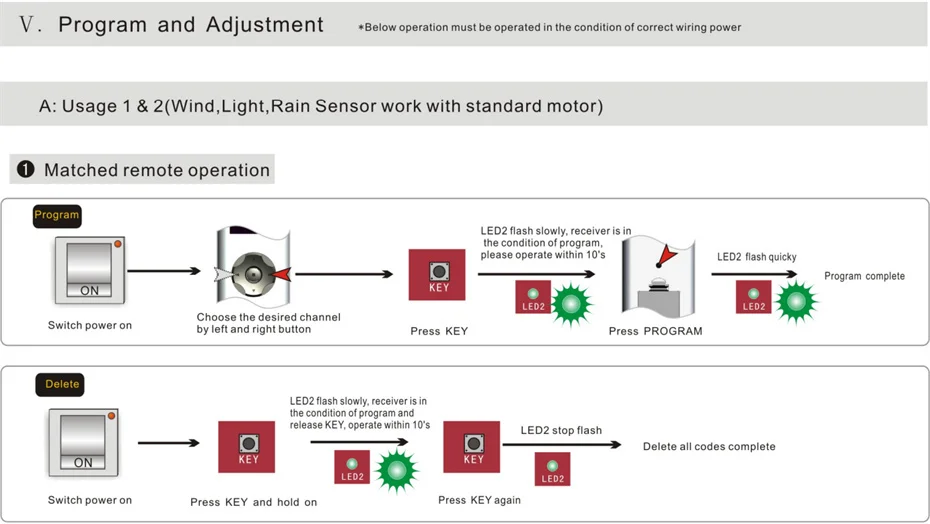

How to make pair between this sensor and your Dooya RF433 tubular motor of fixed code with 3 wires?
1. Make pair between your Dooya RF433 tubular motor and your Hand-held remote or RF433 emitter wall switch successfully(normally press P2-P2-UP Button on remote)
2. Press P2 button on the back of hand-held remote 2 times

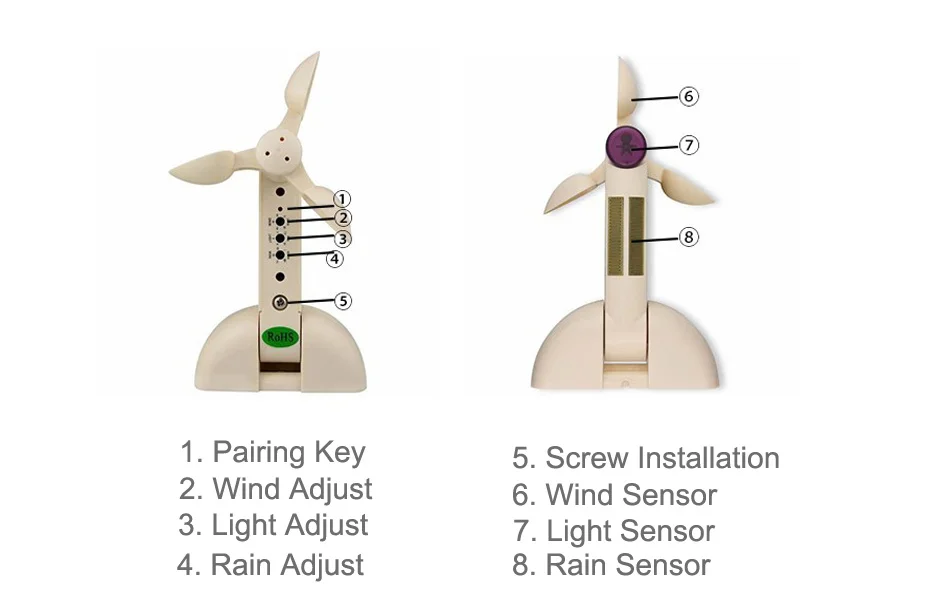

3. Then Press pair button on the wind light rain sensor 2 times
,Then all ok

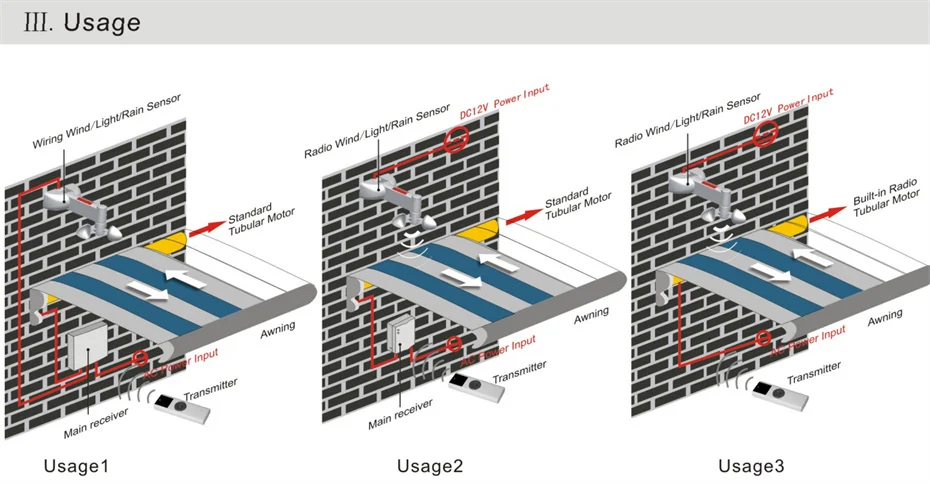

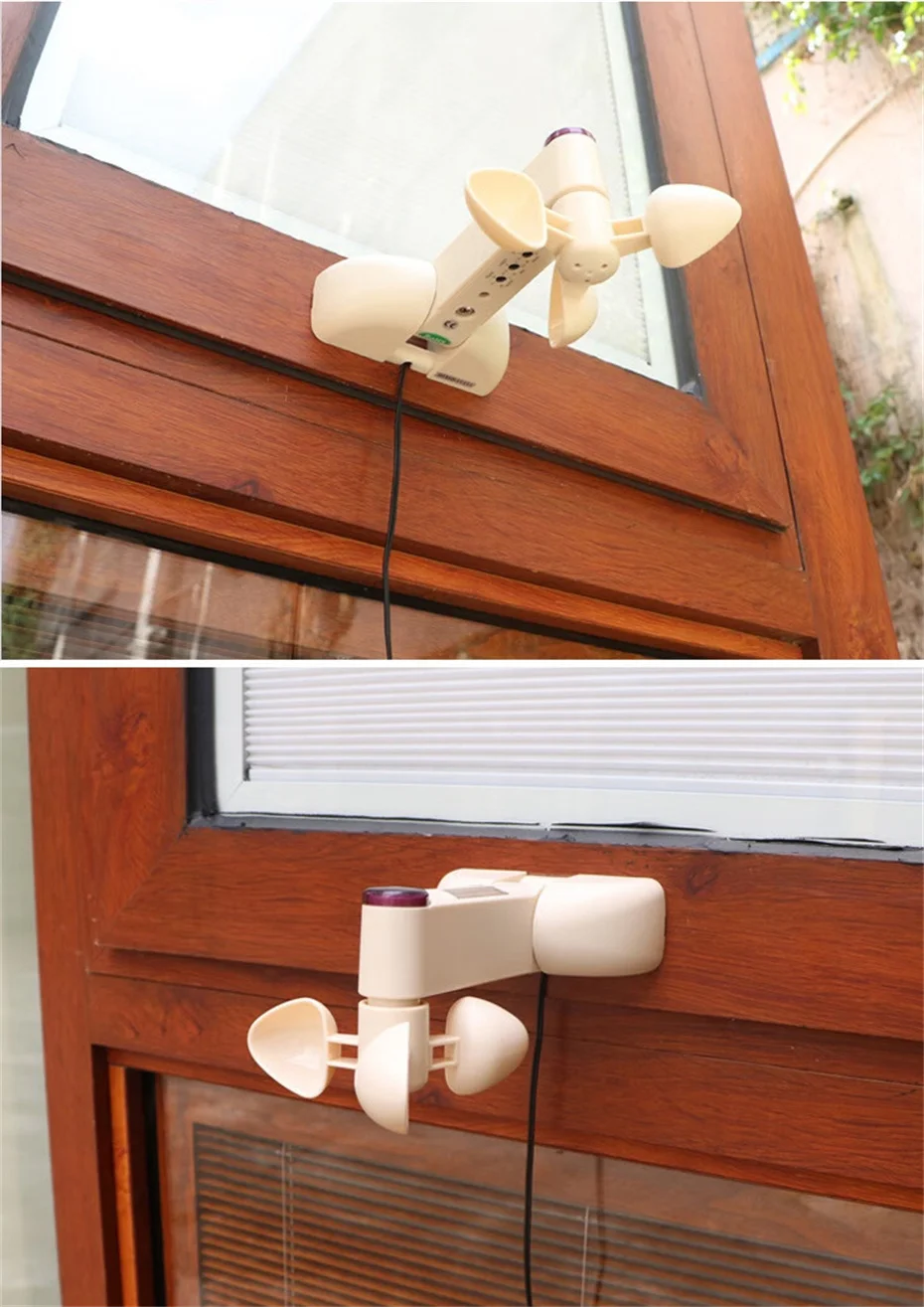

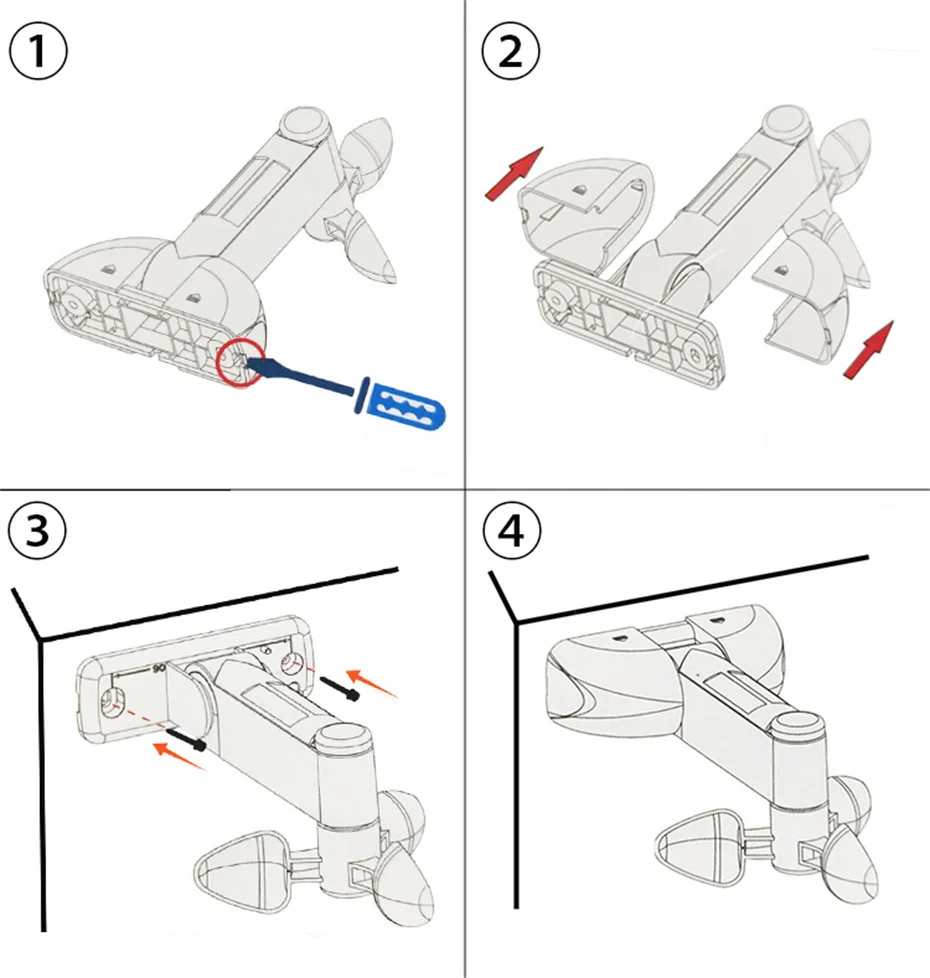

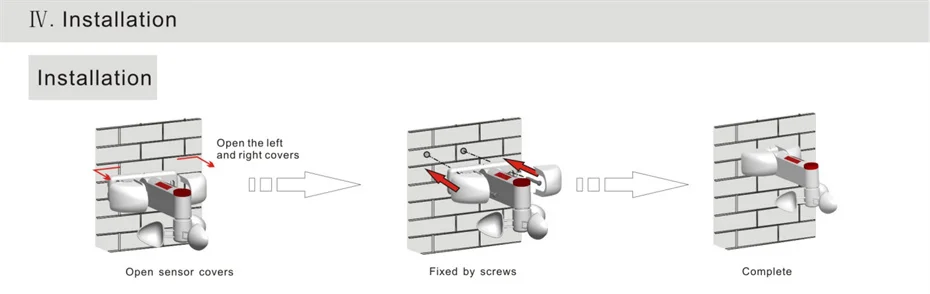

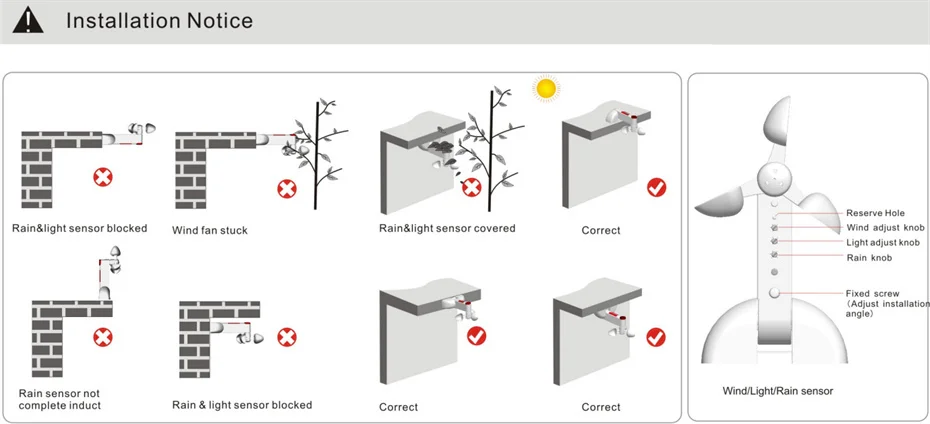

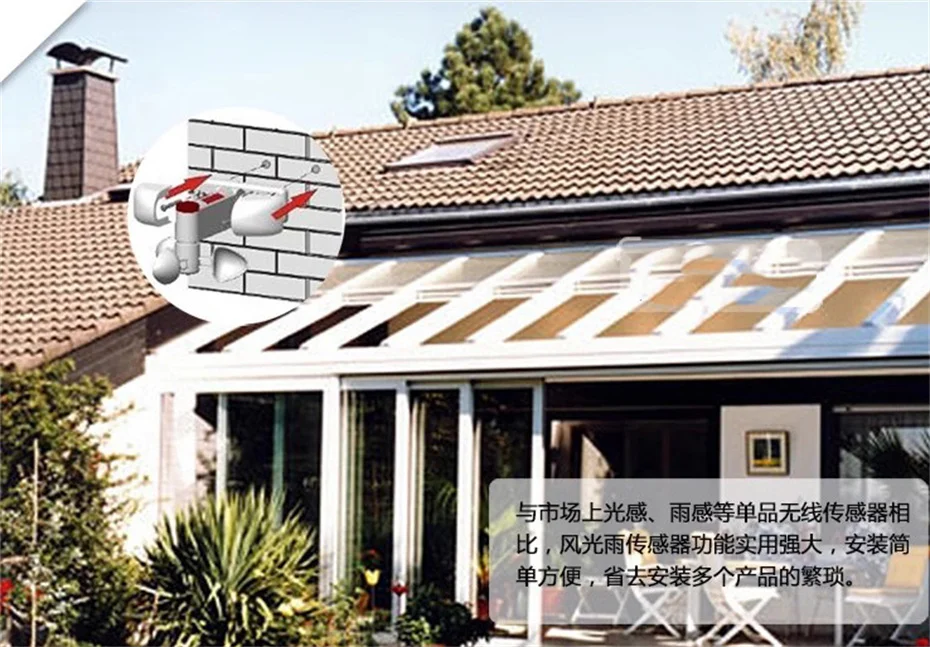

4. Then you can install the wind light rain sensor now according to suggestions on the user manual, you need to choose suitable place.

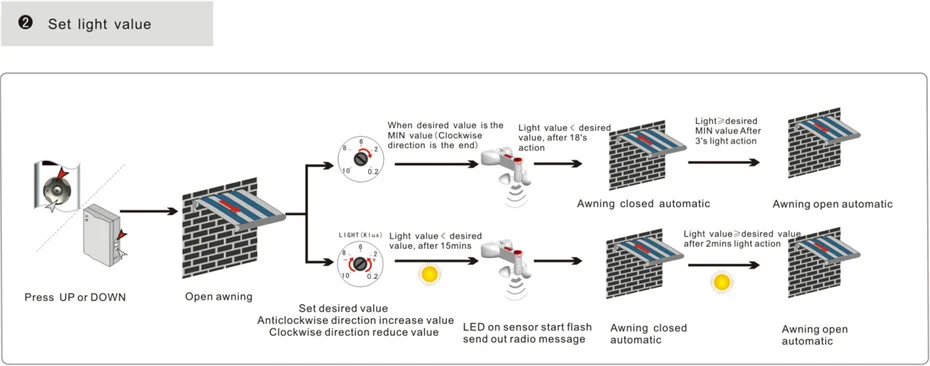

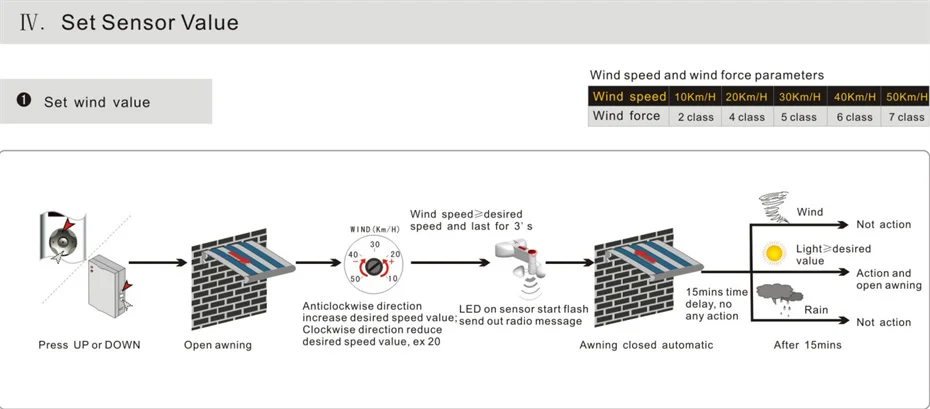

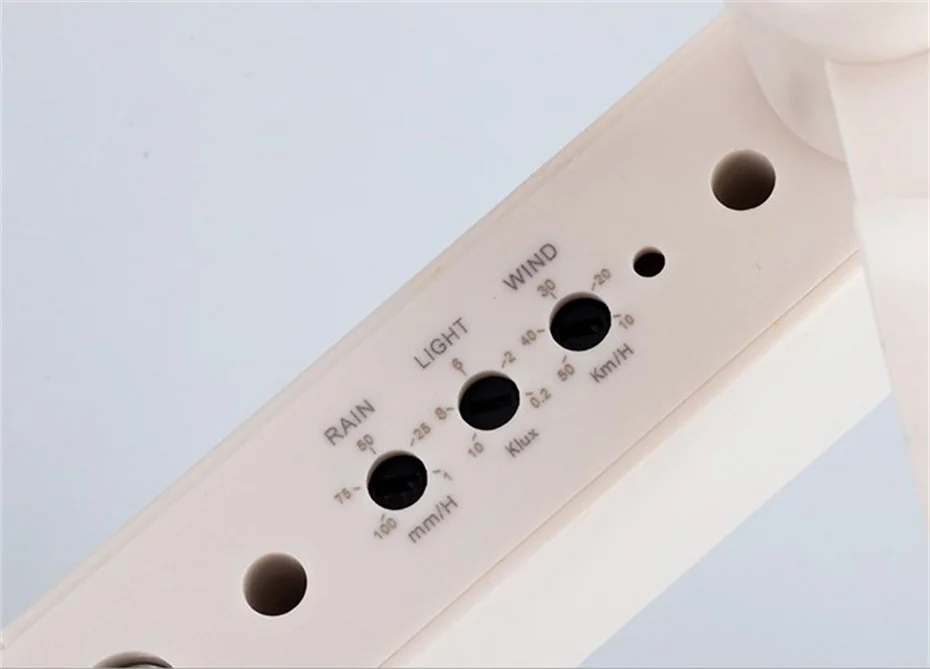

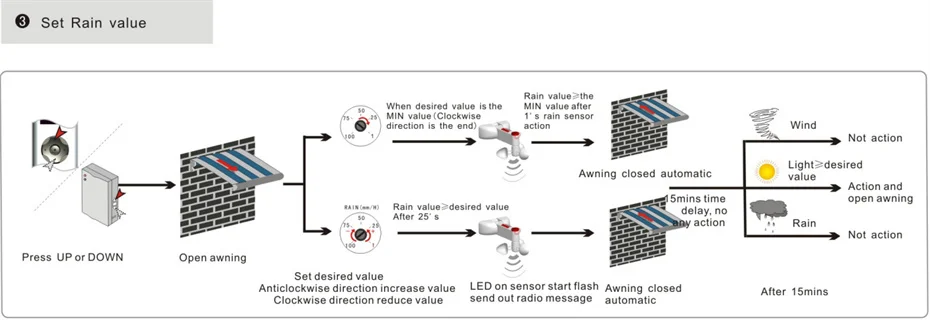

5. After installation, you need to set wind value, light value and rain value according to suggestions on the manual and adjust them

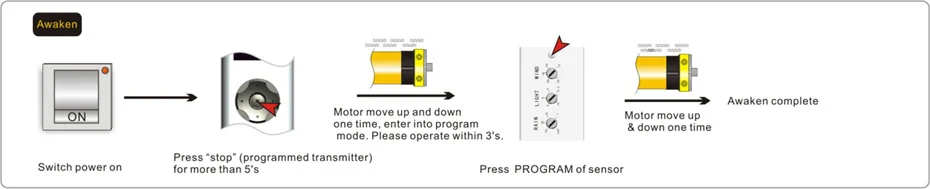

If there is strong wind, then your awning open, how to change it???
1. Turn off the power of motor 2. one minute later,turn on the power of motor 3. Press P2 button of hand-held remote one time in 6 seconds 4.Press P2 button of hand-held remote one time again 5.Then press Down Button of hand-held remote,reversing direction ok
